PRODUCT
- 제품소개
- SMPS
특장점
- 고효율, 소형화, 경량화 제품 개발 및 양산
- 가정용, 의료기기, 음향기기 등 고객 요구를 반영하여 개발 및 양산
- 신뢰성 장비를 운영하여, SMPS 품질 고도화
SMPS
SMPS(Switching Mode Power Supply)는 스위칭 동작에 의한 교류전원을
직류전원으로 변환하는 방식으로 전력효율이 높으며 부피가 작고 가벼운 전원 공급장치입니다.

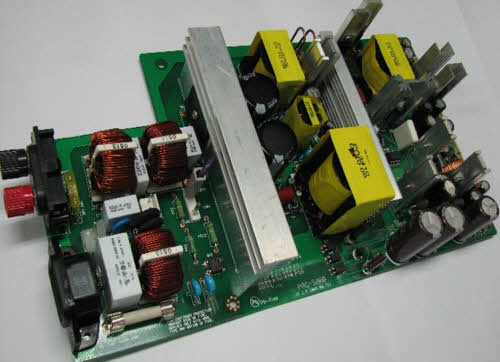

AUDIO AMPLIFIER
- Universal input voltage. (AC90-300V)
- Standby power of max 0.4W at load 2mA, 6.5Vdc
- DC output : Max 37Vdc/2A, Peak 37Vdc/9.5A
- AM tuner compatibility because MW interference reduced to
negligible levels. - FM compatibility.
- Secures fault condition.
- Meets safety regulations requirement
- Mechanical size : 155(L) x 95(W) x 40(H) mm
PAGING SYSTEM PSU
- Input voltage (AC100 / 240V)
- Output 5VS, 5V, 8V, 12V, ±15V, 24V, 31V, 34V/10A, 2Vac for VFD,
27.5V/3A for battery backup - AM tuner compatibility because MW interference reduced to
negligible levels - FM compatibility
- Secures fault condition
- Meets safety regulations requirement
- Mechanical size : 300(L) x 160(W) x 50(H) mm

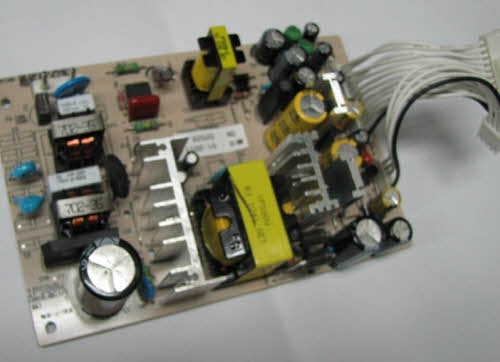

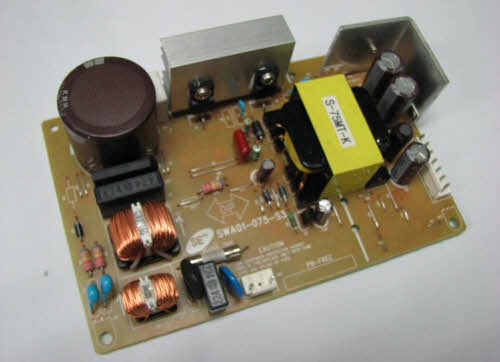

SET TOP BOX PSU
- Universal input voltage ( AC90- 264V )
- DC Output : 3.3V, 5V, 6.8V, 6.8V, 12V, 23V, 32V
- Secures fault condition
- Meets safety regulations requirement
- Mechanical size : 147(L) x 95(W) x 35(H) mm

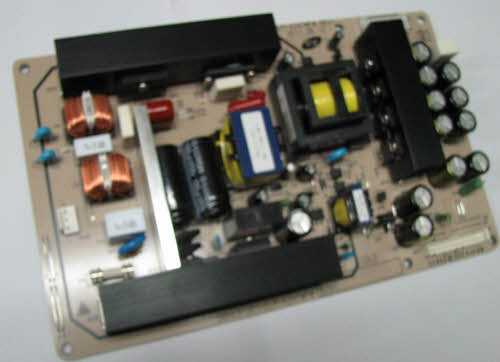

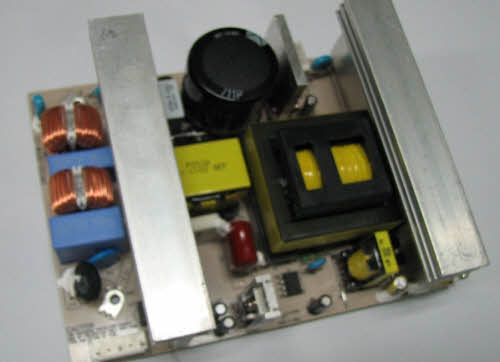

LCD TV PSU
- Universal input voltage ( AC90- 264V )
- DC Output : 24Vdc/8.5A, 12Vdc/2.7A, 5VSdc/1.5A
- Secures fault condition
- Meets safety regulations requirement
- Mechanical size : 245(L) x 145(W) x 30(H) mm
- Input voltage : AC100- 136 V
- DC Output : 5VS, 12VS, 6V
- Secures fault condition
- Meets safety regulations requirement
- Mechanical size : 145(L) x 130(W) x37(H) mm
MEDICAL PSU
- Input voltage : AC187- 264V
- DC Output : 5VS/1A, 13.5Vdc/1.5A, 24Vdc/12A
- Secures fault condition
- Meets safety regulations requirement
- Designed minimal energy loss
- Mechanical size : 245(L) x 145(W) x30(H) mm
- Universal input voltage ( AC187- 264V )
- DC Output : 5Vdc/1A, 13.5Vdc/1.5A, 24Vdc/12A
- Secures fault condition
- Meets safety regulations requirement
- Designed minimal energy loss
- Mechanical size : 245(L) x 145(W) x 30(H) mm

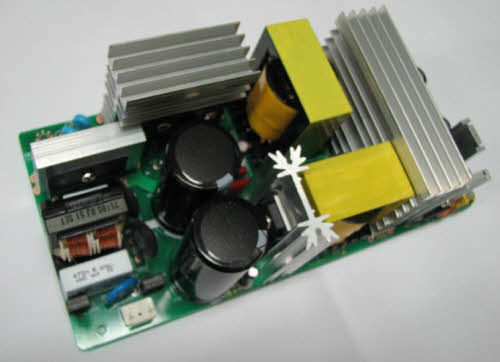

COMMUNICATION PSU
- Universal input voltage ( AC100- 280V )
- DC Output : 24Vdc/8A, 12Vdc/3A, 5dc/3A
- Secures fault condition
- Meets safety regulations requirement
- Main applications include machine controller and billboard display,
- computer appliances
- Designed resonant converter plus power factor corrector for efficiency
- and harmonic reduction
- Mechanical size : 245(L) x 145(W) x 30(H) mm

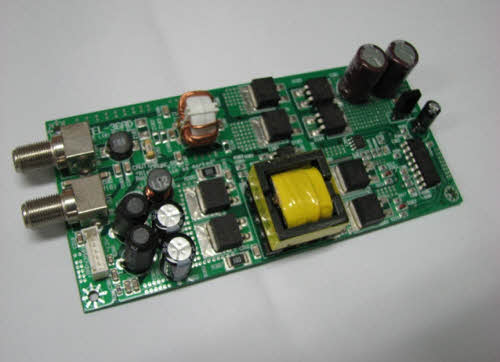

- Input voltage ( AC18- 36V )
- DC Output : 12Vdc/3A
- Secures fault condition
- Meets safety regulations requirement
- Two F connector for ac input and antenna bypass
- Designed for isolation and dc votage between low ac voltage and
RF Signal line - Mechanical size : 145(L) x 65(W) x28(H) mm
ADAPTER
- Universal input voltage ( AC100- 240V )
- DC Output : 24Vdc / 3.5A
- Secures fault condition
- Meets safety regulations requirement
- Mechanical size : 140(L) x 54(W) x 33(H) mm

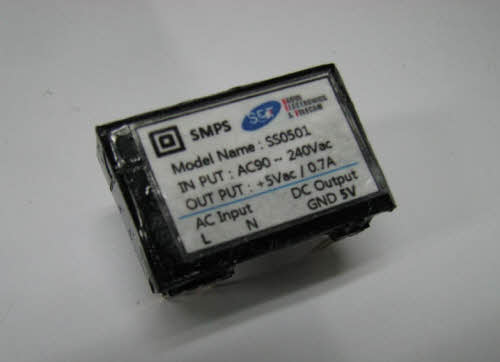

STANDBY PSU
- Universal input voltage ( AC100- 240V )
- Standby power of Normal 0.3W at load 20mA, 5Vdc
(0.18 W at 220Vac and No Load) - Secures fault condition
- Meets safety regulations requirement
- Mechanical size : 35(L) x 23.5(W) x 14.5(H) mm

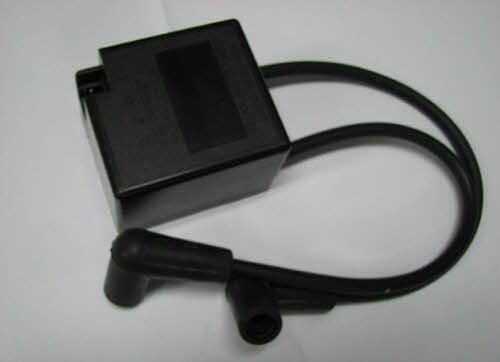

IGNITOR (INGNITION TRANS)
-
Ignitor for oil heater and boiler
- High voltage of 18.5KV, 30mA
- Mechanical size : 72(L) x 64(W) x 47(H) mm
-
Ignitor for Gas boiler and Gasoline machine
- High voltage of 19.0KV, 10mA
- Mechanical size : 70(L) x 55(W) x 25(H) mm
NOISE FILTER and BLOCKING FILTER
- EMI filter for Conductivity Suppression Radiation Suppression
(1phase, 3Phase) - Filter for Power Line Communication Specific frequency bandwith
- Modified and custom designs available
